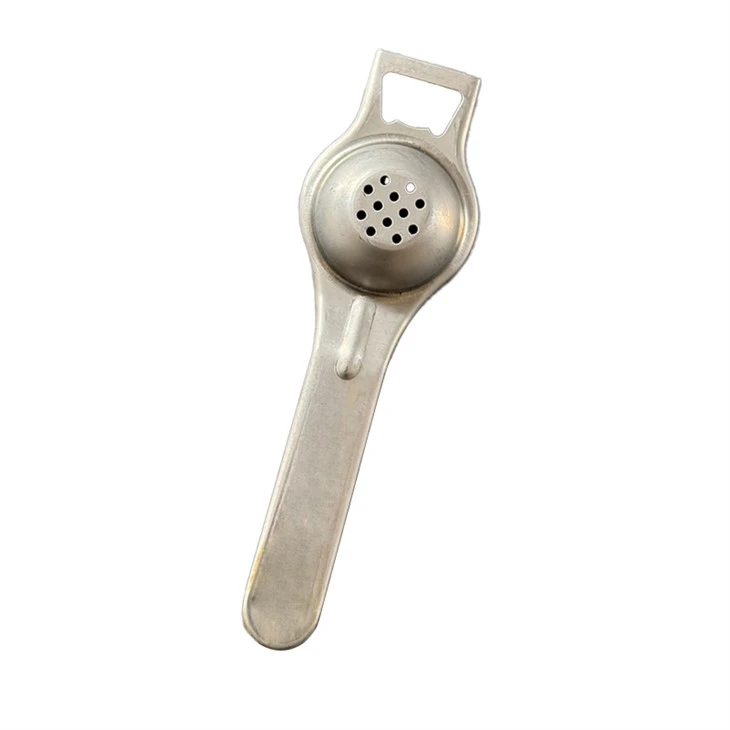

In the manufacturing process of precision drawn parts, relying solely on basic processes is often insufficient to consistently achieve the requirements of high precision and consistency. A series of mature and reusable techniques must be applied in areas such as material selection, mold design, process control, and inspection methods. These techniques, embodying long-term practical experience, can significantly improve forming success rate, reduce defect rate, and optimize production efficiency under complex structural forming and stringent tolerance requirements.
Firstly, in the material pretreatment stage, appropriate material selection and condition control are key techniques. The plasticity, hardening index, and surface condition of different metal sheets directly affect their stretch formability. Experience shows that for high-strength steels, blanks that have undergone spheroidizing annealing or appropriate tempering treatment should be prioritized to reduce initial hardness and expand uniform deformation capacity; for aluminum alloys, pretreatment to eliminate residual stress can be adopted to reduce warping tendency during forming. The blank surface should be kept clean and free of scratches, and if necessary, a special anti-rust or lubricating undercoat should be applied to ensure stable friction conditions in the early stages of forming.
In mold design, mastering the optimization techniques of surface gradients and transition fillets can effectively guide material flow and suppress wrinkling and tearing. The technique involves designing the die and punch surfaces with gradually changing slopes based on the draw ratio and part contour, allowing the material to gradually stretch as it flows into the mold cavity, avoiding stress concentration caused by abrupt changes in cross-section. The radius of the transition fillet needs to be iteratively calculated based on the material thickness and hardening characteristics, generally using 4 to 8 times the material thickness as an initial value, and then fine-tuning it to the optimal value through trial molding. Simultaneously, the blank holder surface should fit well with the outer edge of the blank, and local protrusions should be set in key sections to enhance the ability to suppress wrinkling.
Forming process control techniques emphasize the zoned management of blank holder force and the gradual increase of drawing speed. The blank holder force should not be a constant value, but should be dynamically adjusted according to the material flow state at different stages of forming: slightly higher in the initial stage to suppress wrinkling, moderately lowered in the middle stage as the material adheres to the mold to reduce resistance, and slightly increased again in the later stage to ensure tight contour adherence. The stretching speed should start low and gradually increase after the material flow stabilizes. This reduces the risk of localized thinning or breakage caused by inertial impact. Lubrication techniques are also crucial. A lubricant with appropriate viscosity should be selected based on the material and mold temperature, and applied evenly to both sides of the blank. Multiple sprays or a solid film should be used if necessary to maintain stable lubrication throughout the process.
In multi-pass stretching, the proper arrangement of intermediate annealing and shaping processes is a common technique for improving the quality of deep-cavity parts. After each pass, the wall thickness distribution and hardening degree should be assessed, and low-temperature annealing should be performed as needed to eliminate work hardening effects and restore plasticity reserves. The shaping process is used to correct springback and minor dimensional deviations, often ending in the final pass with a smaller gap and precise blank holder force to ensure batch consistency.
Quality inspection and feedback correction also rely on skill. Online non-contact measurement can capture contour and wall thickness changes in real time. Once an anomaly is detected, the corresponding blank holder force, speed, or lubrication parameters should be traced and adjusted. Statistical process control (SPC) techniques can help identify trend drift and intervene early to prevent batch deviations.
Furthermore, cross-departmental collaboration skills are particularly important in complex projects. Design, process, mold, and inspection teams should share 3D models and analysis data early in the project, develop contingency plans for high-risk areas in advance, and reduce the number of trial moldings and development cycles.
Overall, the manufacturing techniques for precision drawn parts permeate the entire process, from materials and molds to processes and quality control, emphasizing data-driven precision control and the flexible application of accumulated experience. These techniques not only improve forming quality and production efficiency but also provide strong support for companies to maintain technological leadership and cost advantages when facing challenges from new materials and structures.
